Lighting Effects
quick navigation

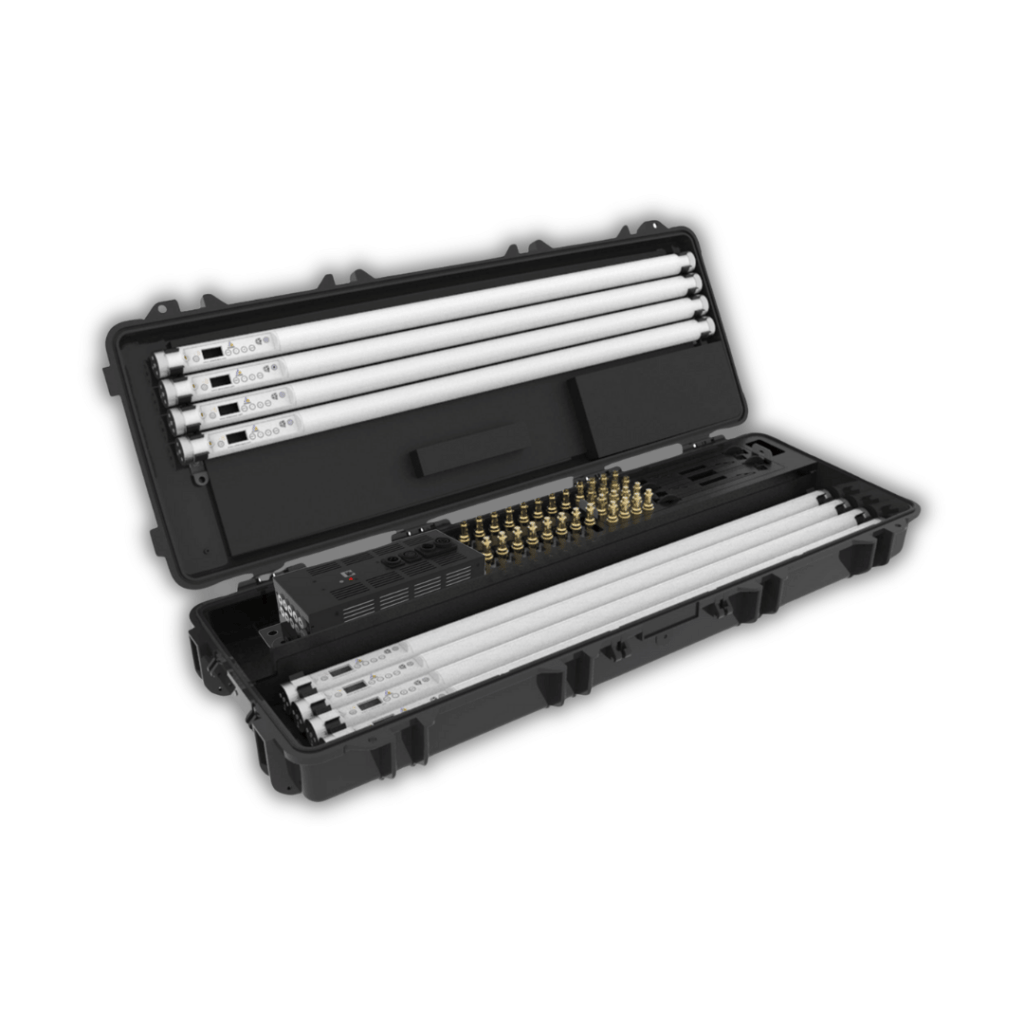

Titan Tube
What to Expect
Illuminate your stage with precision and creativity with this tube light, which offers a wide 120° beam spread ideal for cinematic, theatrical, and event productions.
Tech Specs
-
- H 40.7″ x W 1.7″, 3 lbs
- Consumable: N/A
Key Features & Things To Know
The Titan Tube features 16 LED emitters in a 3.4′ tube, powered by an integrated battery providing up to 20 hours of runtime on a three-hour charge. It delivers up to 785 lux at 3.3′ (4000K), with RGB, mint, and amber LEDs allowing for millions of custom colors.
Suitable for various mounting options including set, stand, or hand-held, it boasts a high CRI/TLCI rating of 96/96 for accurate color rendition. Perfect for adding versatile lighting effects to any production environment.

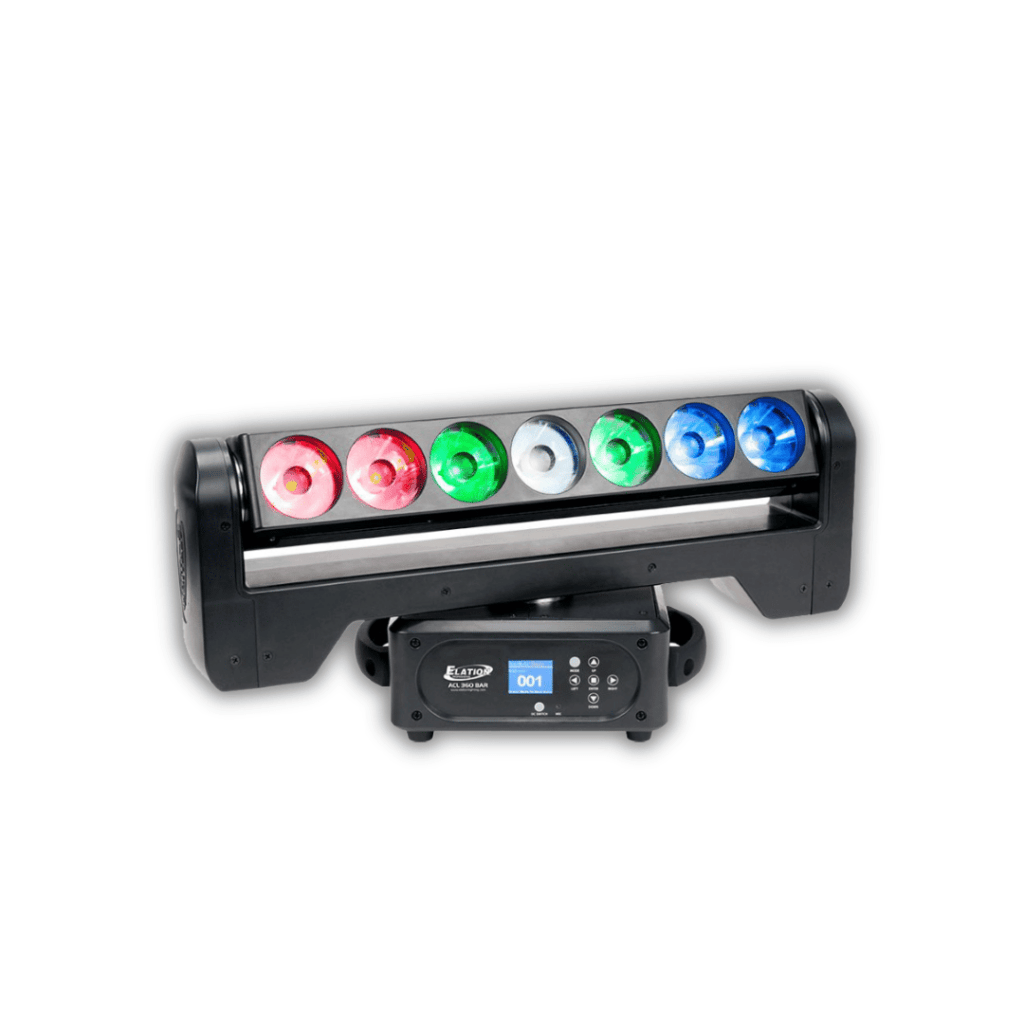

Elation 360 Light Bars
What to Expect
Experience dynamic lighting effects with laser-like 4° color-changing beams, expandable to a 31° beam angle.
Tech Specs
-
- L 22.6″ x W 7.2″ x H 10.2″
- Consumable: N/A
Key Features & Things To Know
The ACL 360 BAR™ offers versatile functionality with 16-bit continuous full 360° pan and tilt rotation, full individual pixel control, strobe effects, and selectable dimming curves. It supports DMX, RDM (Remote Device Management), KlingNET™, and Art-NET protocols, with 3/5pin XLR, powerCON, and RJ45 ethernet in/out connections.
It includes a user-friendly 6-button control panel with a full color 180° reversible menu display, consumes up to 135W of power, and operates on a multi-voltage universal auto-switching power supply (100-240v).

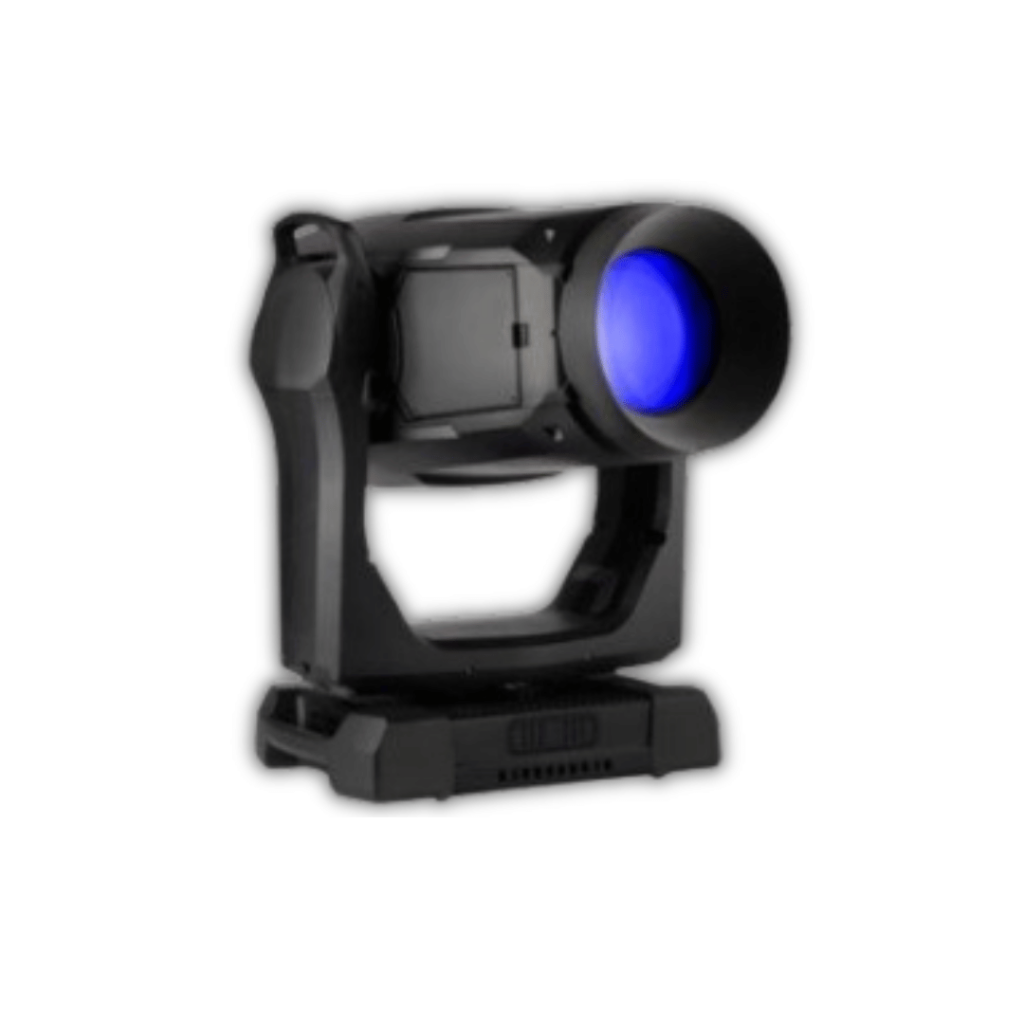

Martin MAC Viper XP
What to Expect
The Martin MAC Viper XIP is a next-generation moving head that combines the legendary Viper performance with innovative weatherproofing technology, offering exceptional lumen output, low-noise operation, and unparalleled versatility.
Tech Specs
- Power Connector: TRUE1, TRUE1 to Edison, L5-20, L6-15, L6-20 or PowerCON adapters available by request
- Power: 7.8A at 120v, 4.4A at 208v, Electronic Ballasts
- Data Connector: XLR5 in/thru
- Fixture with omega brackets, clamps, & safety cable: 59 lbs
Key Features & Things To Know
This lighting fixture is powered by a 760W LED light engine with 55 x 20W white LEDs, delivering a total of 56,000 lumens from the light engine and 28,000 lumens from the fixture itself. It features advanced color mixing with a CMY system, variable color temperature control (5800K to 2850K), and a color wheel with five dichroic filters, including a Spectral Enhancement Filter. Dual rotating gobo wheels, each with seven interchangeable gobos plus open, combined with a gobo animation wheel with continuous rotation and variable angles, provide dynamic effects and creative flexibility.
The fixture also offers precise beam control, with an iris, zoom, four-facet prism, and two levels of frost effects. It includes an extended framing module with individual tilt and rotation, as well as automated focus with tracking. With P3 videomapping for color and intensity control, two ranges of pre-programmed effects, Green-Magenta Shift Control, and Virtual CTC Control (2000–12850K), this fixture provides versatile lighting options suited for a wide range of applications.
It includes a user-friendly 6-button control panel with a full color 180° reversible menu display, consumes up to 135W of power, and operates on a multi-voltage universal auto-switching power supply (100-240v).

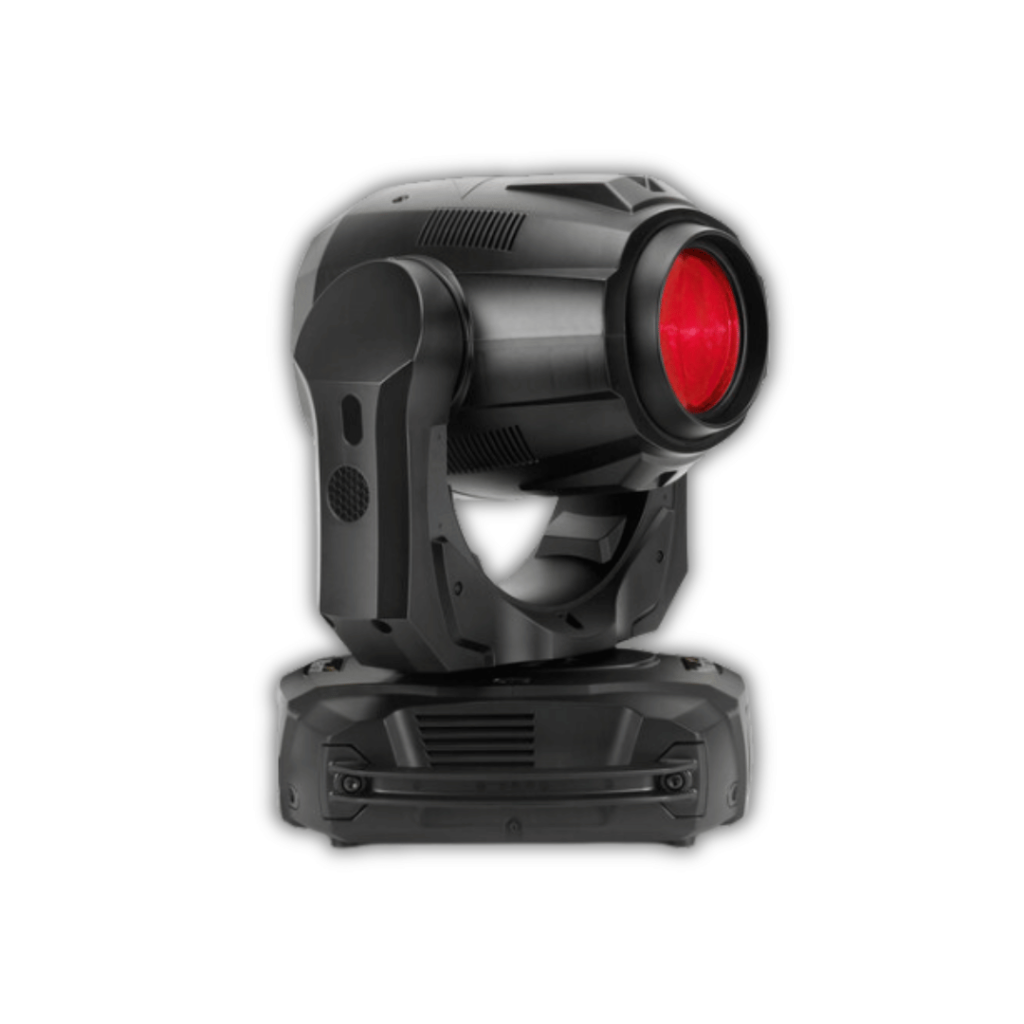

Martin Mac Axiom Hybrid
What to Expect
The MAC Axiom Hybrid is a true all-in-one product, combining beam and spot into one compact unit that also offers diffused wash functionality. The high-precision optical system offers exceptional contrast, both in mid-air and projection as well as a surprisingly flat field, usually not seen with this short-arc lamp technology.
Tech Specs
- Power Connector: TRUE1, TRUE1 to Edison, L5-20, L6-15, L6-20 or PowerCON adapters available by request
- Power: 5.5A 110v (600w)
- Data Connector: XLR5 in/thru
- Fixture with omega brackets, clamps, & safety cable: 59 lbs
Key Features & Things To Know
The MAC Axiom Hybrid features a powerful 440W Short Arc lamp, providing 16,000 lumens in wide mode and 14,000 lumens in narrow mode at a 7000K color temperature. Its mechanical dimmer offers smooth 0-100% dimming control, while the CMYC color mixing system, based on the MAC Viper palette, allows for precise color adjustments. The 16 dichroic filters on the color wheel, along with indexing and continuous rotation, enable creative color effects, including random variations.
The fixture includes two rotating prisms: a 3-facet and an 8-facet, each with dynamic zoom effects for added versatility. It also features a frost filter for smooth washes and a Beamsmoother for flat field projection. With a focus range from 2 meters to infinity and a continuous zoom of 2° to 44°, the MAC Axiom Hybrid offers both sharp beams and wide coverage, making it ideal for various lighting applications.

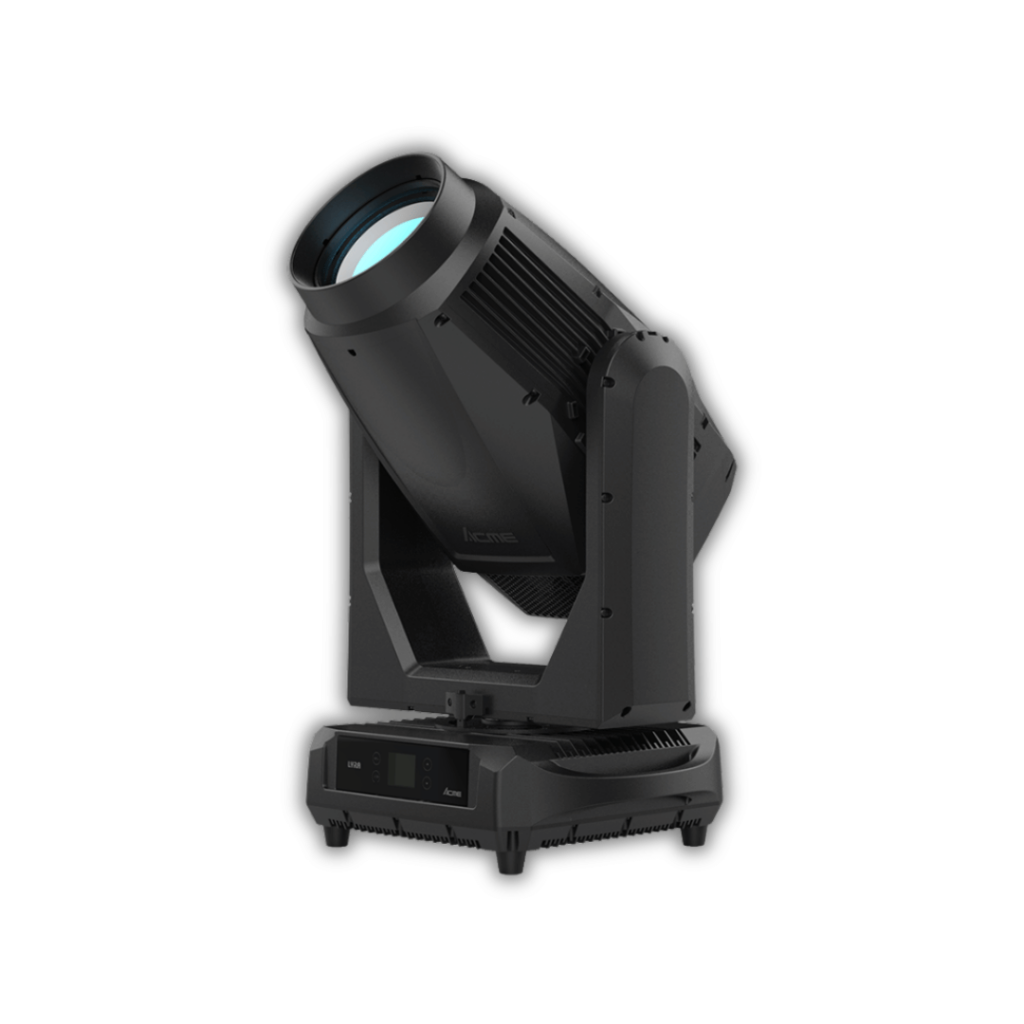

Acme Lyra
What to Expect
The Lyra is a multifaceted, LED spot fixture that ACME designed and manufactured to deliver the performance you need and take on the outdoors in all weather conditions.
Tech Specs
- Power Connector: True1 in/thru
- Power: 10A @ 120v; 5.8A @ 208v (1200w)
- Protection Rating: IP66
- Data Connector: XLR5 in/thru, and XLR3 in/thru
- Fixture with omega brackets, clamps & safety cable: 93 lbs
Key Features & Things To Know
The Acme Lyra is a high-performance LED moving head fixture featuring a 1,000W, 8,000K white LED engine with a 160 mm frontal lens, delivering up to 35,000 lumens in standard mode and 25,600 lumens in HCRI mode. It offers motorized zoom, focus, and linear iris with a beam angle range of 6° to 50°. The fixture utilizes a CMY color mixing system, a color wheel with 5 colors plus open, and a linear CTO for color correction from 2,700K to 6,700K. It also includes 4 dimming curves for versatile light control.
The Acme Lyra features a 4-blade framing system with full blackout and ±60° rotation, along with multiple gobo options, including a static gobo wheel with 9 gobos, a rotating gobo wheel with 7 high-precision glass gobos, and an animation wheel for continuous rotation. Additionally, it has two rotating, indexable prisms (4-facet and 4-facet linear), and two variable frost filters (light and medium) for further refinement of effects and projections.
